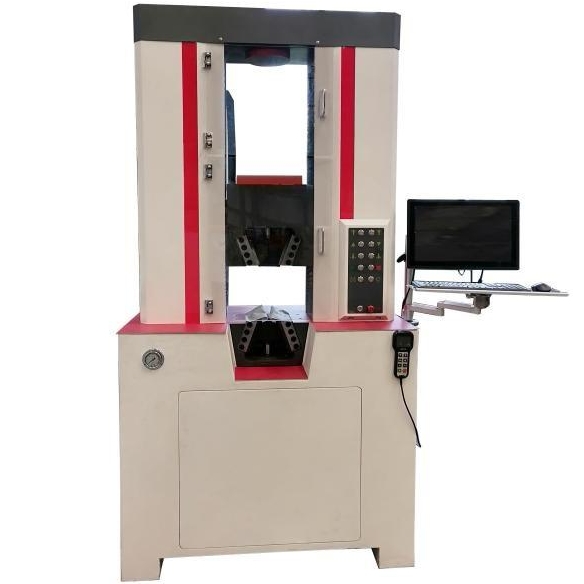

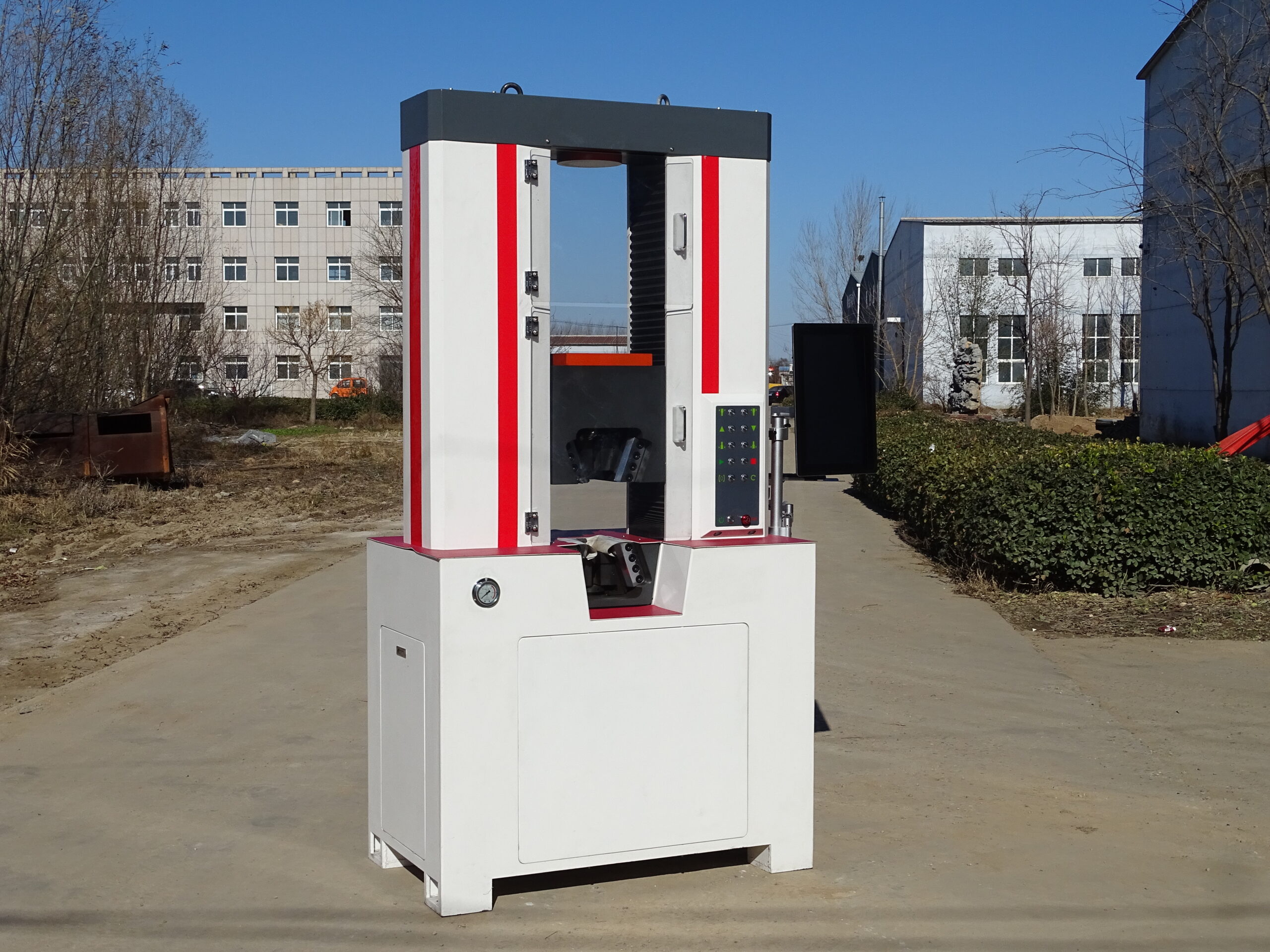

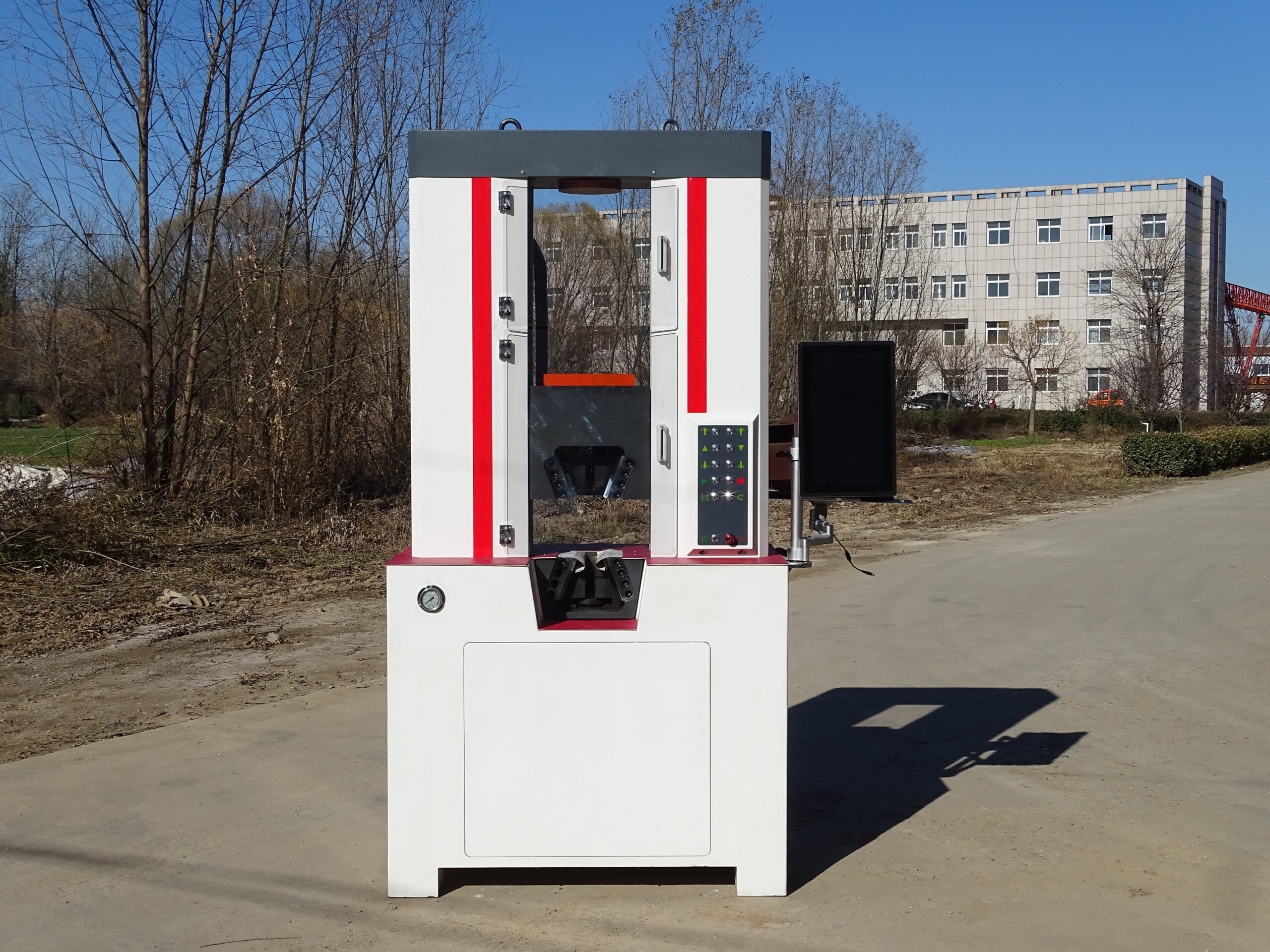

WUFO model（10T/30T/60T/100T）Electro-hydraulic servo universal material testing machine

WUFO model（10T/30T/60T/100T）Magic Series Electro-hydraulic Servo Universal Material Testing Machine adopts the independently developed dual servo cylinder loading and upper compression and lower tension dual space structure (replacing the traditional upper tension and lower compression), and is equipped with a powerful shock absorption structure, a large flow servo power unit and a load sensor. It features good control reliability, high precision, convenient operation, low noise and no impact. It is produced and inspected in accordance with GB/T 16826-2008 Electro-hydraulic Servo Universal Testing Machine and JJG 1063 -2010 Electro-hydraulic Servo Universal Testing Machine Verification Regulation, and can meet the relevant test requirements for metal materials’ tensile, compressive and bending tests as stipulated in standards such as GB, ISO and ASTM.

Main technical parameters:

1、Maximum test force（kN ）： 100(10T)/300(30T)/600(60T)/1000(100T)

2、Relative error of the test force indication value： ≤土0. 5%

3、Force measurement range： (1%~ 100%) FS

4、Force loading speed range(m/s)： 0.01%~3% FS

5、Stress rate error： ≤土2%

6、Constant strain control range(m/s)： 0. 00003-0.0005

7、 Strain rate error： ≤土2%

8、Constant velocity displacement control range（mm/min）： 0.5~ 400(10T、30T)，0.5~ 230(60T、100T)

9、Relative error of displacement velocity： ≤土2%

10、Maximum ascending speed（mm/min） ： 300 (10T、30T)，200(60T、100T)

11、Maximum descent speed（mm/min）：750 (10T、30T)，500(60T、100T)

12、Tensile test space（mm）： 70-600 (10T、30T)，90-680(60T、100T)

13、Compression test chamber（mm）： 60-600 (10T、30T)，60-650(60T、100T)

14、Disc size： upΦ150、down190*200 (10T、30T)，upΦ200  down280*300(60T、100T)

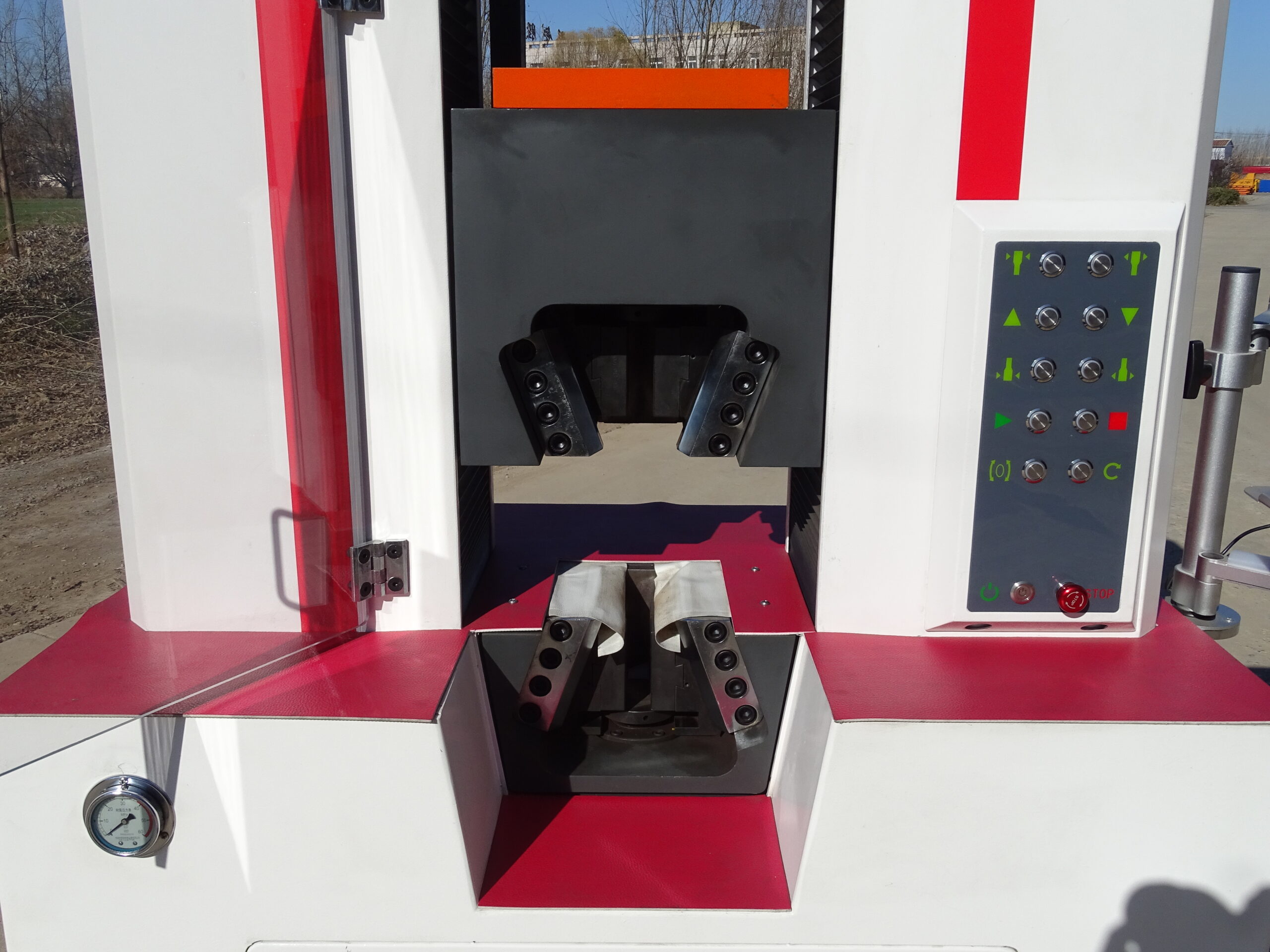

15、Sample clamping method： hydraulic pressure

16、The clamping range of the circular specimen（mm）： Φ10-Φ30(10T、30T)，Φ16-Φ60(60T、100T)

17、The clamping range of the test plate sample（mm）： 0-20(10T、30T)，0-30(60T、100T)

18、Sample holding width（mm）： 75(10T、30T)，110(60T、100T)

19、Motor power（KW）： 2.3(10T、30T)，3.0(60T、100T)

20、The size of the mainframe（mm）： 1200×850×2150(10T、30T)，1400×950×2400(60T、100T)

21、Power supply： 220V土10%(10T、30T)，380V土10%(60T、100T)

22、Total weight（kg）：1250(10T)/1350(30T)/2200(60T)/2400(100T)
