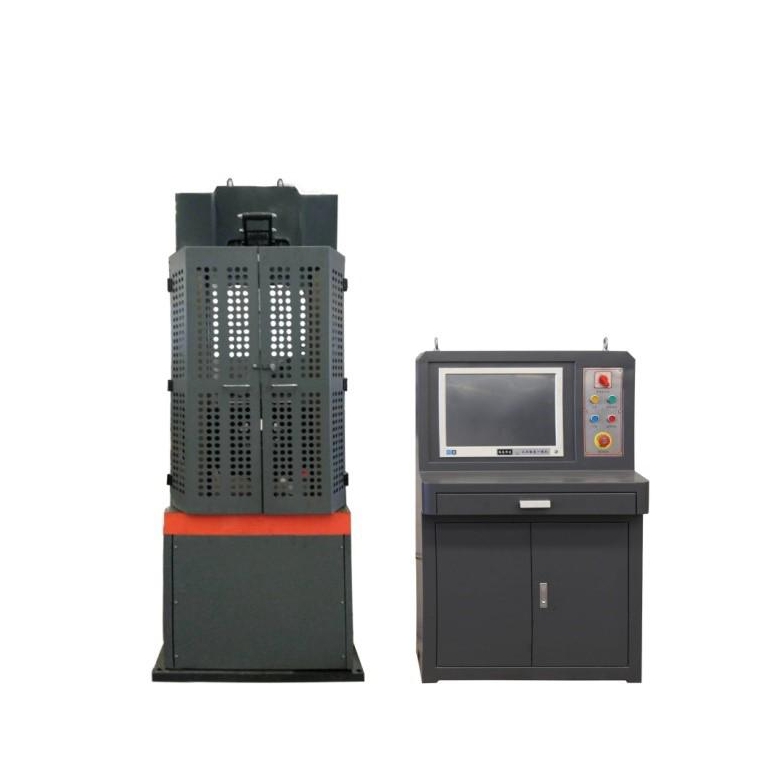

WSJ-50/100D Microcomputer-Controlled Electro-Hydraulic Servo Universal Material Testing Machine

Function and Application: Primarily used for mechanical property tests of metal materials and non-metal materials, including tensile, compression, bending, and shearing tests. Compliance with standards: GB/T228 Metal Tensile Test Method Standard, GB/T7314 Metal Compression Test Method, GB/T50081 Standard for Mechanical Property Tests of Ordinary Concrete. Overall Machine Structural Features: Four light columns, double lead screws, high rigidity, safety guard net, etc.

Technical Specifications:
Maximum test force: 100 (KN)
Accuracy of the testing machine’s indication: Class 1/Class 0.5
Maximum distance between the stretching clamping heads (measuring the piston stroke): 600mm
Thickness of the flat specimen clamping (mm): 0 – 13
Diameter of the round specimen clamping (mm): Φ6 – 22mm
Maximum distance between the upper and lower pressing plates (mm): 530
Distance between the two points during bending test (mm): 30 – 300
Working piston stroke (mm): 150
Power of the oil pump motor: 0.75 Kw
Power of the moving crossbeam lifting motor: 0.55 Kw
Measurement range: 0 – 100 KN
Total weight of the packing (kg): 130
Main features:
1. Built-in high-strength anti-aging device
2. Four-column double-light-column structure, sturdy and durable. The upper and lower beams are made of cast steel, with high strength and good safety performance
3. High-strength safety guard net
4. Integrated hydraulic jaw, durable and reliable
5. Uses advanced load sensors, with clear and error-free indication
6. High-precision pull-line type encoder, with high measurement accuracy
7. Three-dimensional chassis design, saves space resources, energy-saving and environmentally friendly
8. Silent motor, oil pump, low noise, long service life. Integrated circuits, oil circuits, facilitate maintenance and operation.
Installation details:
① Foundation drawing
② Installation with anchor bolts, during the first concrete pouring.
③ Installation and commissioning, leveling.
④ Second concrete pouring.
