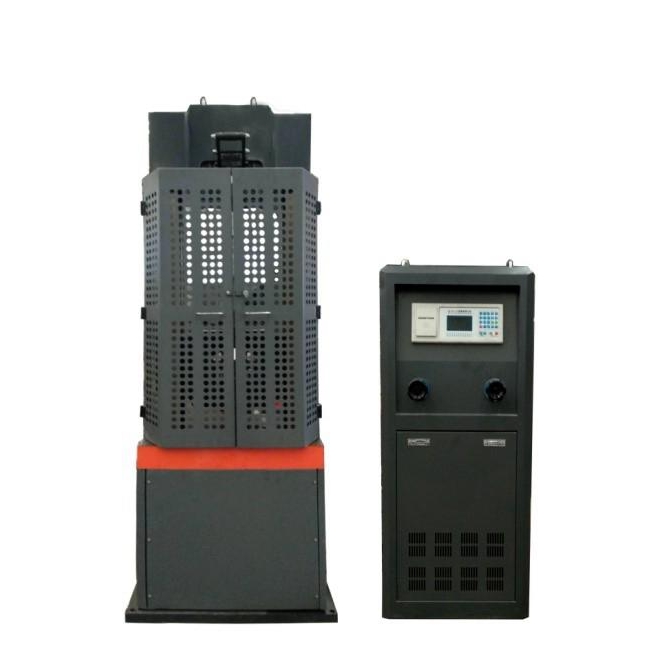

WE-100/300/600/1000/2000B Series Digital Universal Material Testing Machine

Function and Usage: It is used for conducting various tensile, compressive, bending and shear tests on both metallic and non-metallic materials. Force measurement is achieved through sensors, and the force value, loading speed, upper and lower yield points, and force-time curve are displayed in real time on the LCD screen. The reading is clear, the accuracy is high, and the curve can automatically adjust its size according to the force value and time. (It can be connected with extensometers and displacement measurement devices), it can store 1000 sets of sample data, and can be conveniently queried by serial number. It has load speed tracking, overload protection, power failure protection, real-time clock, and an embedded micro printer. There is a communication interface for communication with a microcomputer, and it can be connected to a local area network to achieve remote output of test data and curves.

Technical parameters:
Maximum test force: 100/300/600/1000/2000 (KN)
Accuracy of the testing machine’s indication: Class 1
Maximum distance between the stretching clamping heads (measuring piston stroke): 600mm/650mm/700mm/700mm/700mm
Thickness of flat specimen clamping: 0 – 13mm
Diameter of round specimen clamping: Φ6 – 22mm/Φ6 – 20mm/Φ13-40mm/Φ10-40mm/Φ10-50mm
Maximum distance between the upper and lower pressing plates: 530mm/530mm/550mm/550mm/550mm
Distance between the two points during bending test: 30 – 300mm
Working piston stroke: 150mm
Power of the oil pump motor: 0.75 Kw/0.75 Kw/1.5Kw/1.5Kw/1.5Kw
Power of the moving crossbeam lifting motor: 0.55 Kw
Measurement range: 0 – 100 KN/0 – 300 KN/0 – 600 KN/0 – 1000 KN/0 – 2000 KN
Total weight of the packing (kg): 1000/1400/1700/2000/6000
Installation details:
① Foundation drawing
② Installation with anchor bolts, during the first concrete pouring.
③ Installation and commissioning, leveling.
④ Second concrete pouring.
