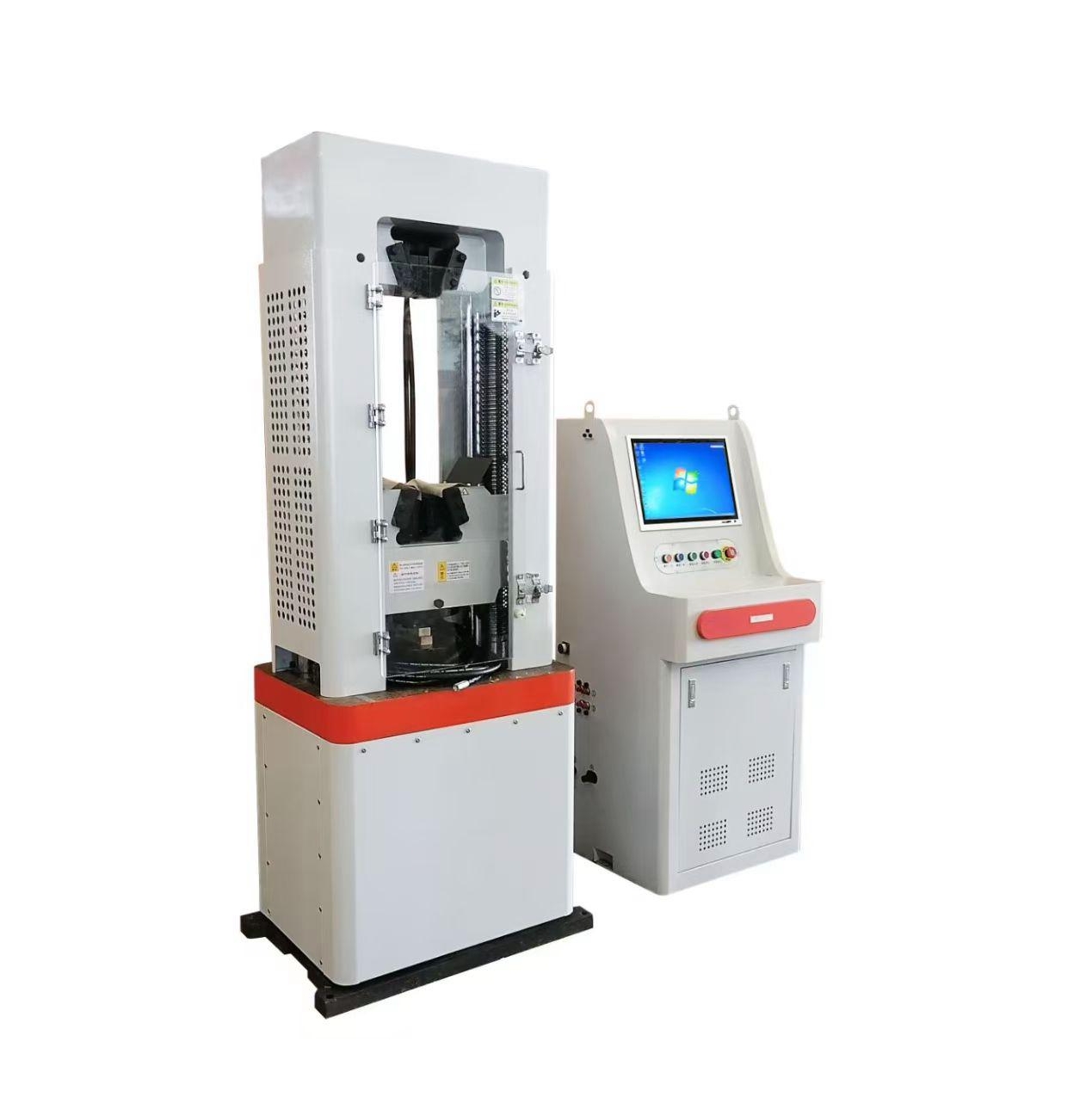

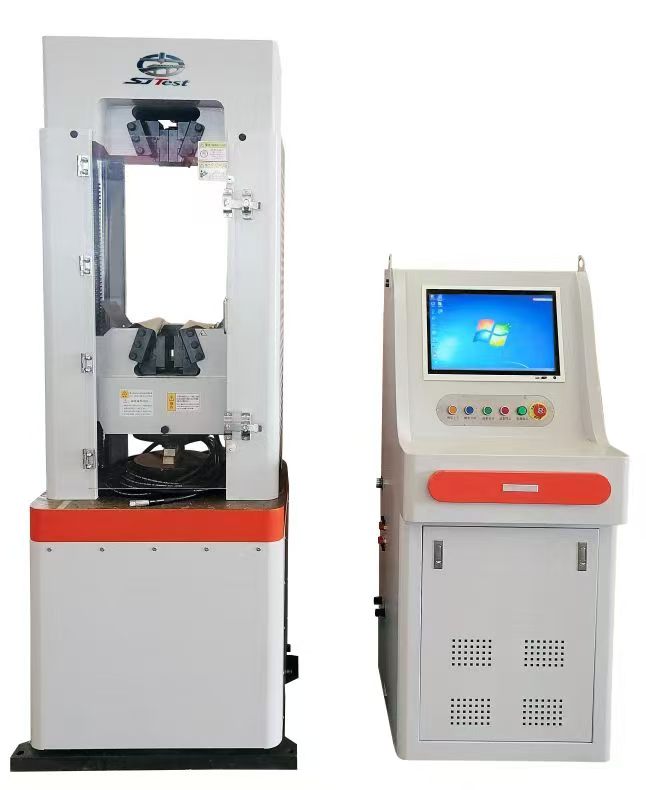

WAW-1000B Microcomputer-Controlled Electro-Hydraulic Servo Universal Material Testing Machine

Function and Application: Primarily used for mechanical property tests of metal materials and non-metal materials, including tensile, compression, bending, and shearing tests. Compliance with standards: GB/T228 Metal Tensile Test Method Standard, GB/T7314 Metal Compression Test Method, GB/T50081 Standard for Mechanical Property Tests of Ordinary Concrete. Overall Machine Structural Features: Four light columns, double lead screws, high rigidity, safety guard net, etc.

Technical parameters:
Maximum test force: 1000(kN)
Measurement range: 0 – 1000(kN).
Relative error of force indication (%): ±1%
Constant rate control of test force: 0.1 – 100%F.S/min, 0.2 – 100%F.S/min (precision type)
Constant rate control of deformation: 0.1 – 100%F.S/min
Constant rate control of displacement: 0.5 – 50mm/min
Speed accuracy: ±5% of set value
Maximum distance between upper and lower pressure plates (mm): 560
Maximum distance between stretching jaws (mm): 555
Clamping diameter of round specimens (mm): 10 – 55
Clamping thickness of flat specimens (mm): 0 – 35
Clamping width of flat specimens (mm): ≤ 115
Effective distance between pillars (mm): 445
Piston stroke (mm): 150
Maximum moving speed of piston (mm/min): 44
Maximum moving speed of crossbeam (mm/min): 320
Motor power (Kw): 2.5
Overall dimensions of the main unit (mm): 835 * 585 * 2110
Overall dimensions of the oil source control cabinet (mm): 700 * 550 * 1600
Weight (approximate) (kg): 2050
Installation details:
① Foundation drawing
② Fixed with anchor bolts, first concrete pouring.
③ Installation and commissioning, leveling.
④ Second concrete pouring.
