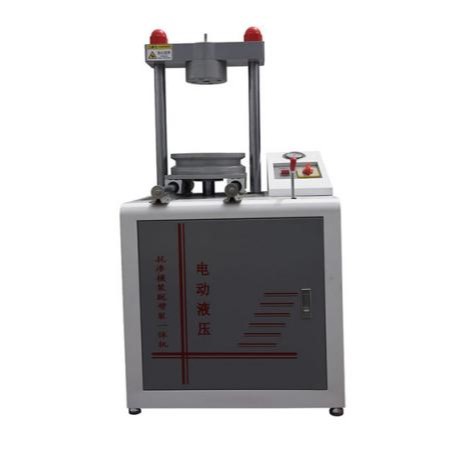

LSD-6A Type Anti-Permeation Mold Assembly for Splitting and Separation
Purpose: An experimental instrument for removing and installing molds for concrete specimens
Description
Technical parameters:
1. Maximum load: 300KN;
2. Measuring force range: 0 – 60MPa;
3. Upward speed: 50mm/min;
4. Maximum working pressure of oil: 31.5MPa;
5. Diameter of piston rod: 45mm;
6. Piston stroke: 300mm;
7. Motor specification: AC380V; 0.75KW;
8. Net weight: approximately 170Kg;
9. Dimensions: 630*500*1150mm (length*width*height)
