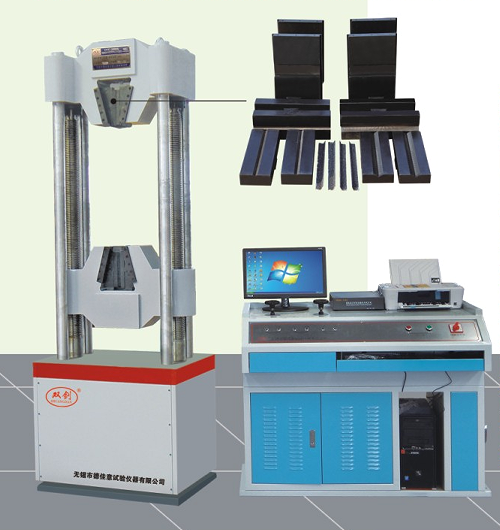

GWEW-600B/1000B Microcomputer Display Universal Material Testing Machine for Steel Strand

Main technical parameters:
Maximum test force (kN) 600/1000
Relative error of force indication (%) ±1
Maximum distance between upper and lower pressing discs (mm) 1000
Maximum distance between stretching jaws (mm) 1000
Distance between bending test rollers (mm) 30-600/50-700
Steel strand diameter (mm) 6-21/8-32
Clamping diameter of round specimens (mm) 13-40/20-60
Clamping thickness of flat specimens (mm) 0-30/0-40
Clamping width of flat specimens (mm) ≤70/≤100
Effective distance between pillars (mm) 565/650
Piston stroke (mm) 250
Motor power (Kw) 1.65/2.15
Overall dimensions of the main unit (mm) 880×600×2450/1000×700×2930
Overall dimensions of the oil source control cabinet (mm) 1080×650×1200
Weight (approximate) (KG) 2500/3500
Note: The stretching forms of the jaws are all hydraulic jaws.
