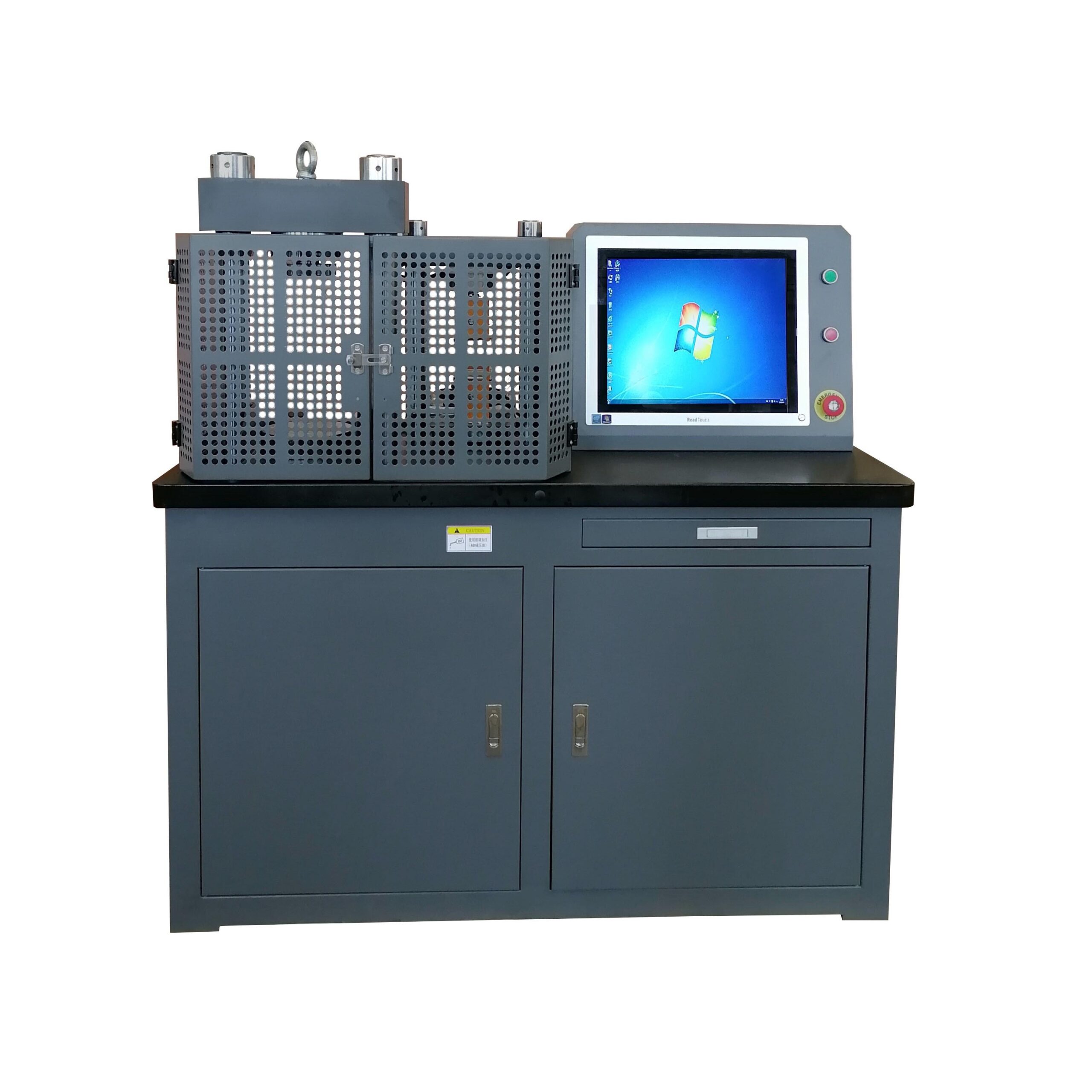

DYE-300S Computerized Fully Automatic Cement Flexural and Compressive Strength Testing Machine

I. Main Technical Parameters
1. Maximum test force: 300kN, 10kN
2. Test force measurement range: 4% – 100%
3. Testing machine accuracy: better than ±0.5%
4. Applied test force error: ±5%
5. Loading speed: standard 2.4kN/second (adjustable)
6. Distance between pressure plates: 180mm
7. Upper and lower pressure plate dimensions: upper φ100, lower φ160mm
8. Overall dimensions (mm): 1280×530×1380
9. Main unit weight: 400kg
10. Power supply: 0.75kw (three-phase)
