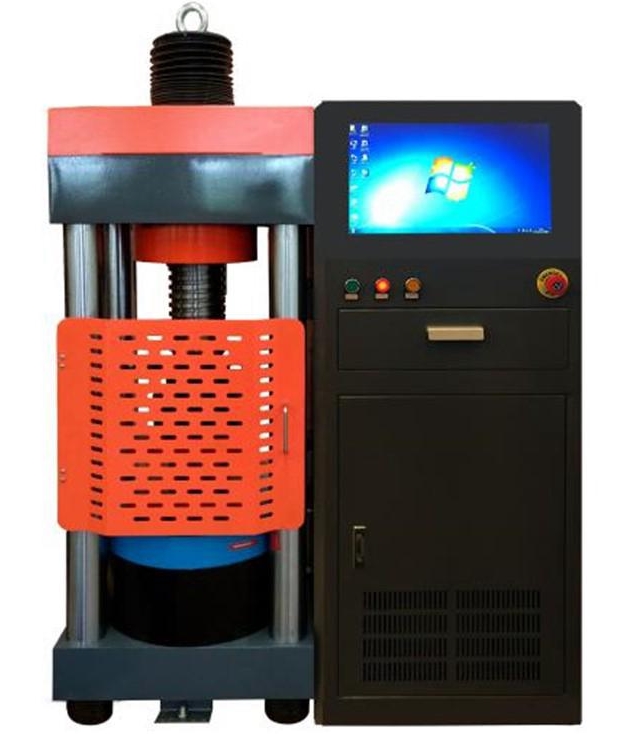

DYE-3000LDH Computerized Fully Automatic Constant Stress Pressure Testing Machine
$100,000.00
Energy-saving design: Three-dimensional design, with small floor area requiredFunctional Features: The electric screw rod adjusts the test space, making the process convenient and fast; The entire test process is controlled by a microcomputer, with real-time curves displaying the force value and time, allowing for comparison; The loading rate is constant and adjustable; The structure is compact, and the entire test process can be completed with just one click; A complete A4 report is printed, and it is connected to the central laboratory for data upload; It is the best updated and new product available in China at present.
Function and Application: This series of testing machines are suitable for the compressive strength tests of cement, concrete, and rocks. With appropriate fixtures and measuring devices, they can also meet the splitting tensile tests, flexural tests, and static compressive elastic modulus tests of concrete; they can also be applied to the compression and top tests of metals; multiple displacement (or deformation) measurement channels can be expanded according to user requirements. Compliance with standards: GB/T7314-2005 Metal Materials Compressive Strength at Room Temperature. Test Method: GB/T50081-2002 Standard for Mechanical Properties Test of Ordinary Concrete; GB/T50266-2013 Standard for Testing Methods of Engineering Rock Mass.
Energy-saving design: Three-dimensional design, with small floor area required.
Technical Specifications:
Maximum test force: 3000 (KN)
Press machine accuracy grade: 1st grade
Relative error of test force indication: within ±1%
Test force measurement range: 10% – 90% FS (full range without step division)
Mainframe structure: Four-column structure
Distance between columns (mm): 310
Distance between upper and lower pressure plates (mm): 320
Pressure plate size (mm): 260*290 (both upper and lower)
Piston stroke (mm): 30
Direction control of piston movement: One-way cylinder
Overall machine dimensions (length*width*height mm): 1030*650*1600
Packaging dimensions (length*width*height mm): 1200*770*1720
Total power (KW): 1
Weight (kg): 120
