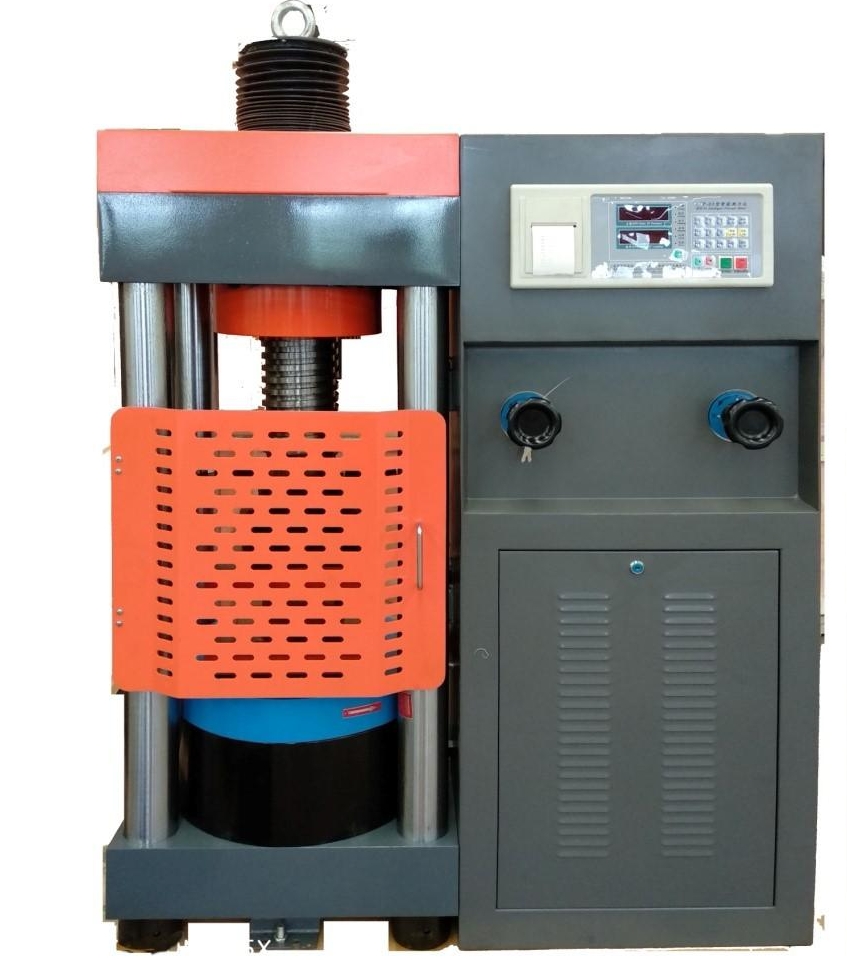

DYE-3000LD Digital Pressure Testing Machine (Column Type, Electric Screw Adjusts Testing Space)

Function and Application: Primarily used for testing the compressive strength of materials such as concrete, cement, bricks, tiles, refractory materials and other building materials. It complies with the “GB/T50081-200 Standard for Mechanical Performance Tests of Ordinary Concrete”. It is manually controlled by oil supply, displays digital data, stores data, is easy to operate, and can be networked with the central laboratory. It is currently the ideal replacement product in China. Technical Specifications:
Maximum test force: 3000 (KN)
Press machine accuracy grade: 1st grade
Relative error of test force indication: within ±1%
Test force measurement range: 10% – 90% FS (full range without step division)
Mainframe structure: Four-column structure
Distance between columns (mm): 310
Distance between upper and lower pressing plates (mm): 320
Press plate size (mm): 260*290 (both upper and lower)
Piston stroke (mm): 30
Direction control of piston movement: One-way cylinder
Overall machine dimensions (length*width*height mm): 1030*650*1600
Packaging dimensions (length*width*height mm): 1200*770*1720
Total power (KW): 1
Weight (kg): 1200
