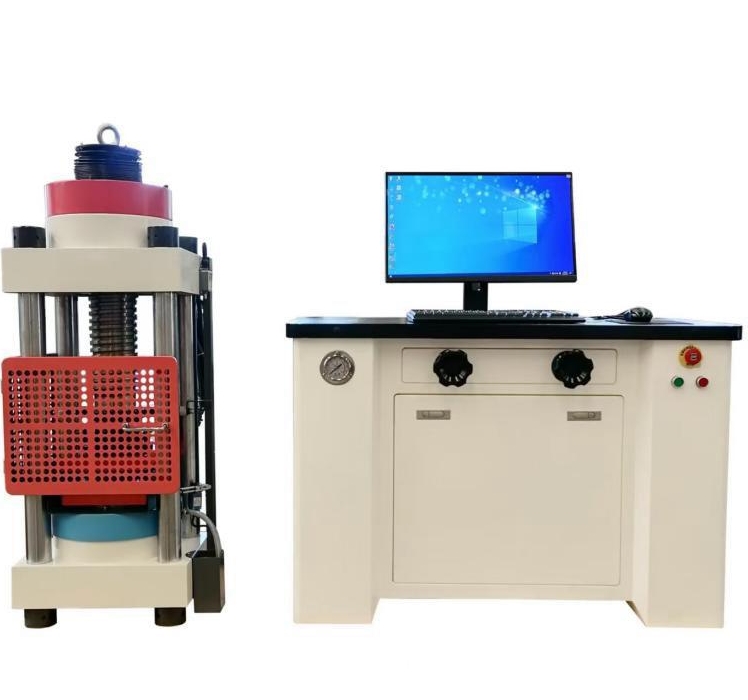

DYE-2000LDHF Electro-hydraulic Servo Concrete Pressure Testing Machine (Split-type; Electric Screw)

Technical parameters:

Maximum test force (kN): 2000
Accuracy grade: ±1%
Loading rate (MPa): 0.3 – 0.8
Loading rate accuracy: ±1%
Effective measurement range: 5% – 95%
Load indication accuracy: better than ±1% of the indicated value
Distance between upper and lower pressure plates (mm): 320
Pressure plate size (mm): 220 × 250
Piston stroke (mm): 50
Piston diameter (mm): Φ250
Maximum oil pressure (MPa): 40
Input power supply: three-phase 380V + neutral line 220V; 50Hz
The dimensions of the mainframe (length * width * height) are: 500 * 700 * 1400 mm.
The dimensions of the control cabinet (length * width * height) are: 1140 * 570 * 780 mm.
The dimensions of the mainframe’s outer packaging (length * width * height) are: 650 × 850 × 1600 mm (the total weight of the mainframe is approximately 677 kg).
The dimensions of the control cabinet’s outer packaging (length * width * height) are: 1300 * 650 * 1250 mm (the total weight of the control cabinet is approximately 183 kg).
The total weight of the entire machine is approximately kg: 860 kg.
