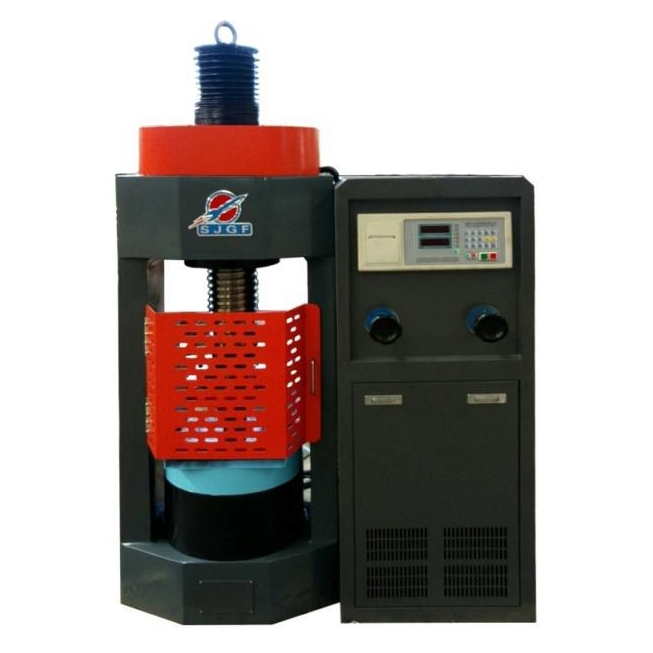

DYE-2000KD Digital Display Frame-type Pressure Testing Machine

Function and Usage: Primarily used for testing the compressive strength of high-strength concrete, cement, bricks, tiles, refractory materials and other building materials. It complies with the “GB/T50081-2002 Standard for Mechanical Performance Tests of Ordinary Concrete”. The overall cast-steel frame structure ensures the accuracy and stability of the force values. Manual oil supply control, digital display, data storage, convenient operation. It is connected to the central laboratory and is currently the ideal replacement product in China.

Technical Specifications:
Maximum test force: 2000 (KN)
Press machine accuracy grade: 1st grade
Relative error of test force indication: within ±1%
Test force measurement range: 10% – 90% FS (full scale without step division)
Mainframe structure: Integral cast steel
Distance between columns (mm): 390
Distance between upper and lower pressing plates (mm): 320
Press plate dimensions (mm): Upper: Φ220; Lower: 220*250
Piston stroke (mm): 30
Test force loading rate (KN/s): 0.02% – 2% FS/s
Direction control of piston movement: One-way cylinder
Overall machine dimensions (length * width * height mm): 1050 * 500 * 1650
Packaging dimensions (length * width * height mm): 1200 * 650 * 1900
Total power (kW): 6
Overall machine weight (kg): 1040
